Service Newland scanner - configuration
Scenario 1: Advanced installation with EasySet software - RECOMMENDED
1.1. Introduction
As an alternative to configure the scanner with barcodes --> Connect the scanner to a PC and configure with the EasySet software. This is the easiest way!1.2. Download the EasySet software
Downloadlink -->: Newland EasySet Configuration software1.2. Download the Connecto manual
Download the Connecto manual (V23100) for configuration & examples -->: MAN Connecto Printer Newland FS305X - Config with EasySet V231001.3. Download Setup file Zorgi X-Kiosk
Connecto has prepared a xml-file that is configured for the X-kiosk application. The settings are according the examples in our manual: HID-device with Belgian keyboard + prefix and suffix. You can upload this file to the scanner with the EasySet software. Remark: the download file is a pdf file. You have to copy the text of the pdf file. Paste it in notepad and save it as an xml-file. The latest version is: Newland- Config - Zorgi - Afterdefaults - XML V231000. Download -->: Newland- Config - Zorgi - Afterdefaults - XML V231000 >1.4. Download Setup file Primuz software
Connecto has prepared a xml-file that is configured for the Primuz applications. Attention: This setup might be subject to changes on Primuz software. The setup should always be tested in a test envirronment. You can upload this file to the scanner with the EasySet software. Remark: the download file is a pdf file. You have to copy the text of the pdf file. Paste it in notepad and save it as an xml-file. The latest version = Newland- Config - Primuz - Afterdefaults - XML V231000. Download -->: Newland- Config - Primuz - Afterdefaults - XML V2310001.5. If you want to configure fast...
If you want to go fast, download our preconfigured config file ( Zorgi or Primuz ) and just sent it to the scanner. Proces Chapters 2,3 and 4 from the manualScenario 2: Download the manual
Use the manual for programming the scanner with barcode programming steps. Download user manual : Newland FM305X-2X_User_GuideSTEP 2: Change keyboard layout of the scanner?
1. Scan the the test QR-code.1.2. It should give:http://www.connecto.com/azerty as a result.
1.3. if you get the result: httpM==Zzz:connecto:co,=qwerty. Proceed to 1.4.

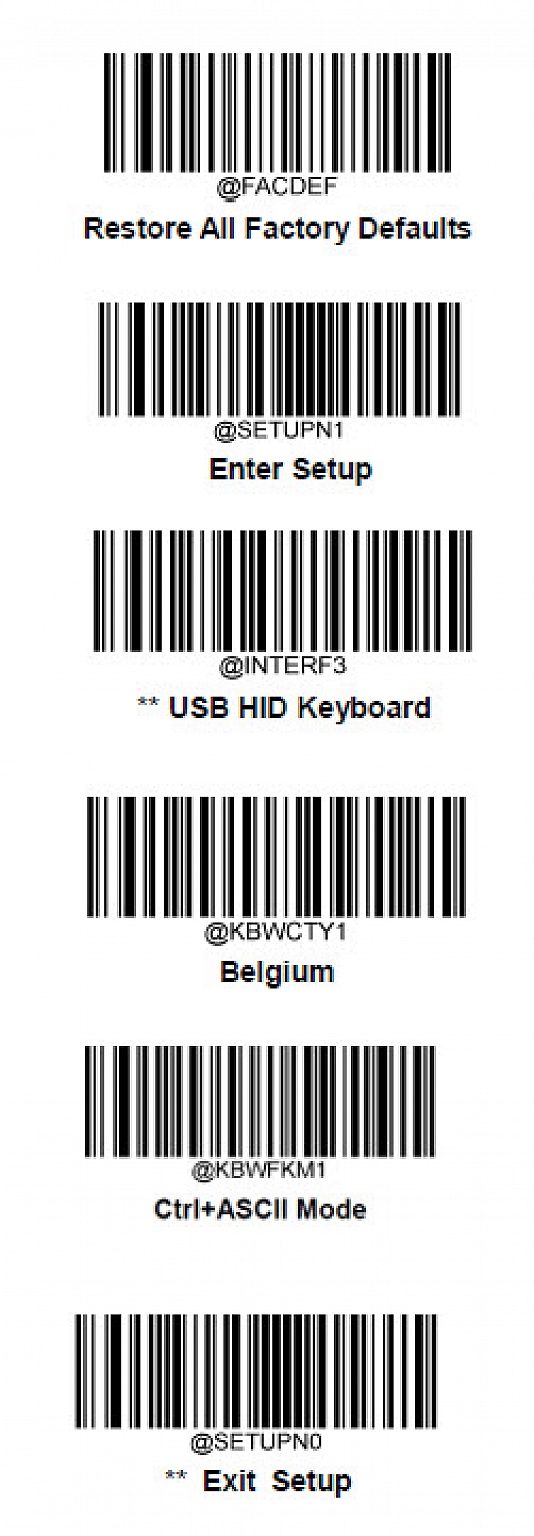

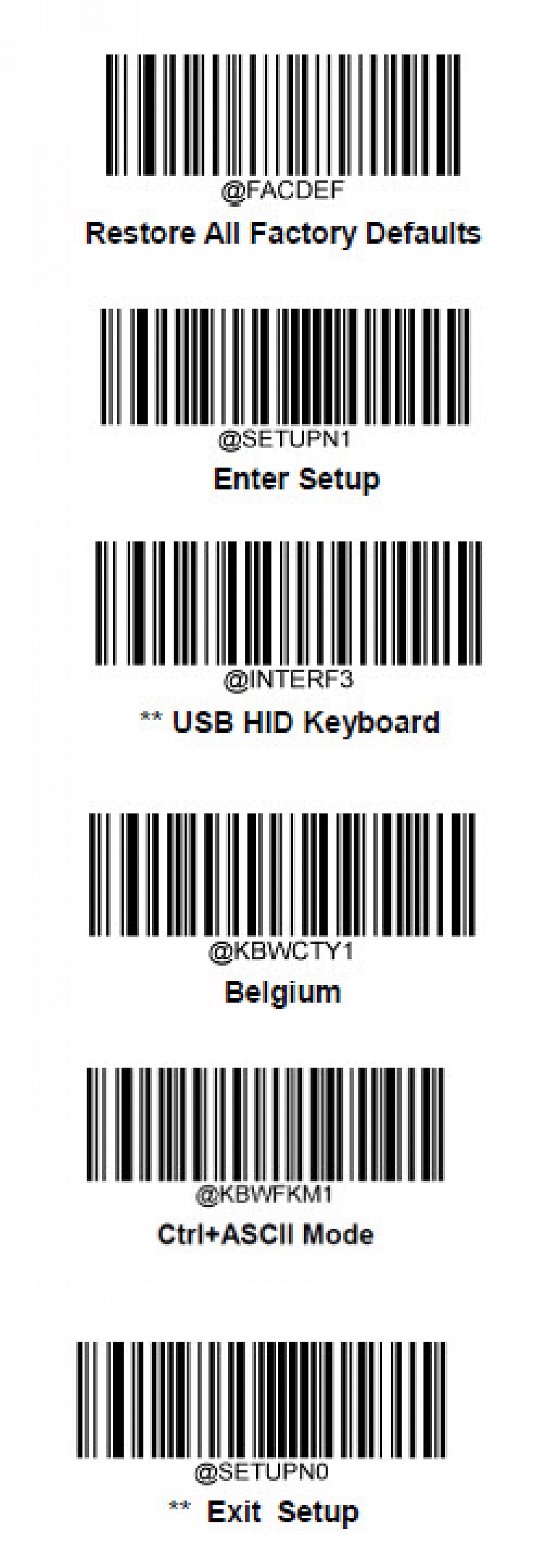

1.4. Action: change the keyboard layout of the scanner. Download the configuration page: MAN_Newland_Scanner_Change keyboard layout or use the barcodes under this text. Scan each barcode. Do the test again.
FAQ 1: How to add a prefix to the barcode?

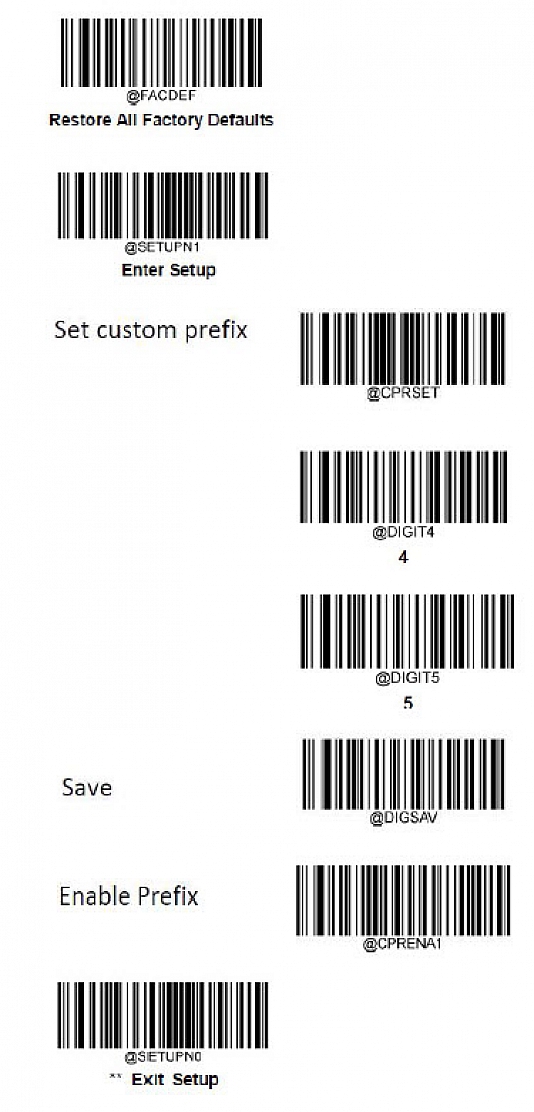

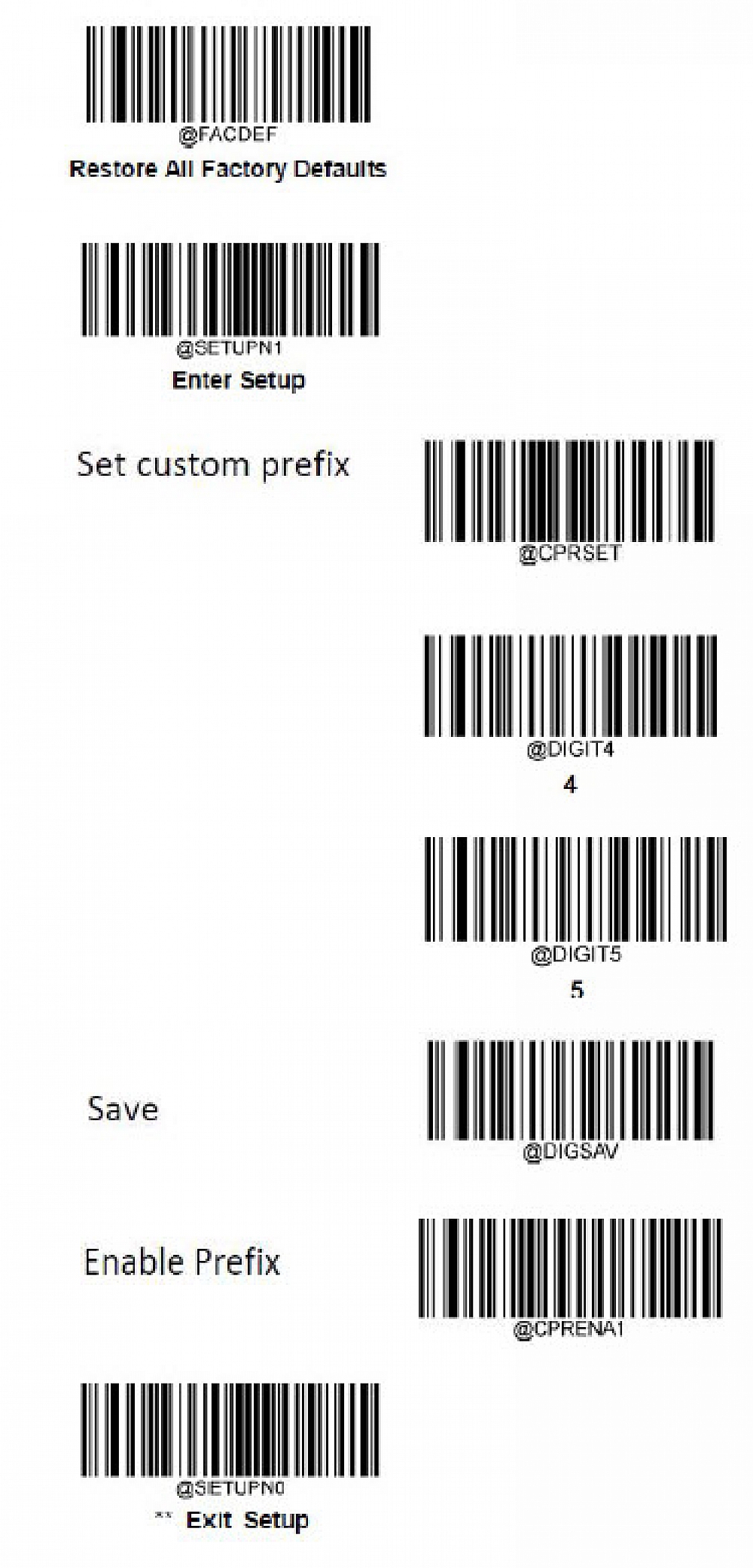

This is an example how to add the character "E" in front of a barcode. Other characters? You have to look up the HEX number. For "E" this is 45. Important: you can use this test to see if the scanner is adding the prefix well to the barcode. In case you want to add for example a "Carriage return", this is not always very well visible in notepad for test purposes.Download configuration page: MAN_Newland_Scanner_Test Prefix E or use the barcodes under this text. Scan each barcode.
FAQ 2: How to add a suffix to the barcode?

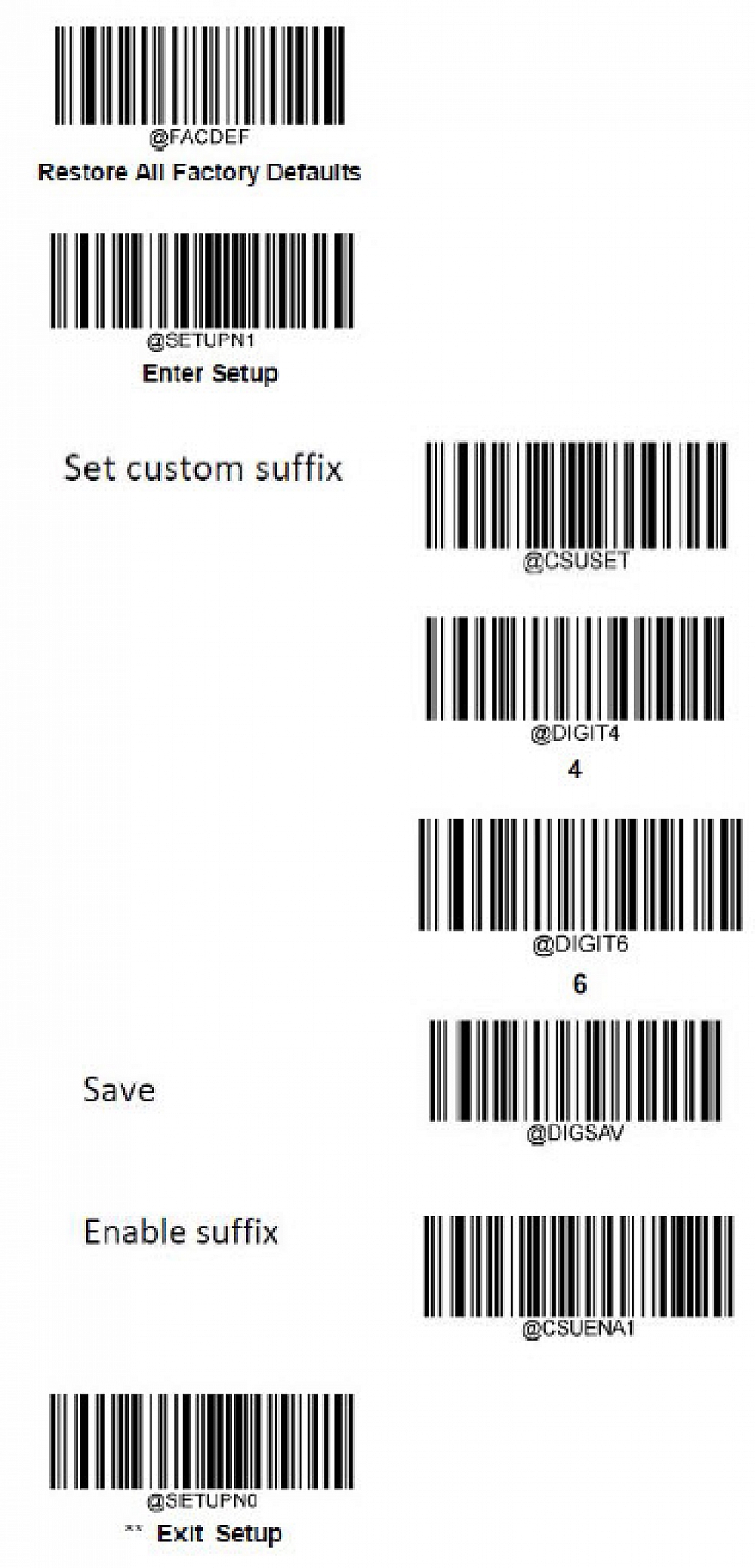

This is an example how to add the character "F" behind a barcode. Other characters? you have to look up the HEX number. For "F" this is 46.Download configuration page: MAN_Newland_Scanner_Test Suffix F or use the barcodes under this text. Scan each barcode.
