Kiosk Wall X1 19" Touchscreen
Wall mount kiosk. 19" TFT + Touch. WxHxD (+/-)=520x637x149 mm. Casing: Alu + powder coated steel - Standard colour: Alu + black. Door front. Optional: PC, Webcam, RFID cardreader, scanner, wireless LAN, 3G.
Advies nodig?
Onze productspecialisten staan voor u klaar.
Bel ons, laat u bellen of stuur een bericht.
Wij bellen u terug
Een antwoord via email
Offerte aanvragen
Offerte aanvragen
Meer informatie

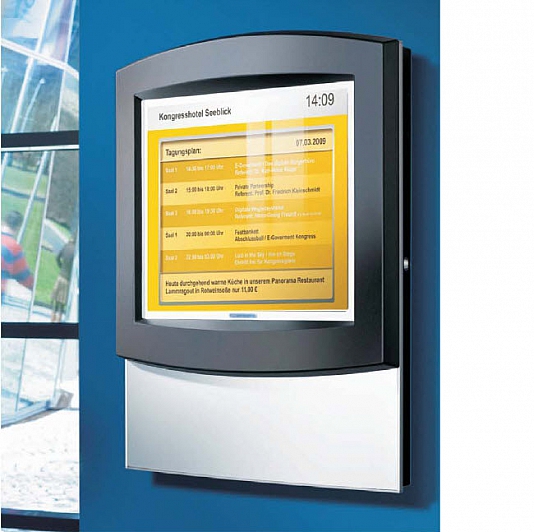

The Wall is a compact kiosk unit and flat design for wall mounting. It offers sufficient space for complete multimedia outfitting.
The slightly curved front significantly enhances the flat appearance of the unit. The service-friendly, lockable maintenance doors provide easy handling and access to the technology. The alu front panels are easy to configure and freely exchangeable.
Materials
Enclosure: Special anodized aluminum profile
Monitor Frame: Aluminum, powder painted
Front panel: Anodized aluminum
Standard Components
Monitor: 19” TFT, Resolution 1.280 x 1.024
Prebuilt for PC: Holder for standard PCs SSF- or USSF-Enclosure. Incl. 230V power
Touch monitor: 19” Touch monitor
Options:
- Keyboard: IP65 metal keyboard in stainless steel with trackball
- PC-Controller: As required
- Sound: 2 x10 Watt speakers, totally integrated
- Printer: 60 or 80 mm thermal printer
- Network: WLAN
- RFID- Reader: Wireless Reader (placed below the monitor)
The slightly curved front significantly enhances the flat appearance of the unit. The service-friendly, lockable maintenance doors provide easy handling and access to the technology. The alu front panels are easy to configure and freely exchangeable.
Materials
Enclosure: Special anodized aluminum profile
Monitor Frame: Aluminum, powder painted
Front panel: Anodized aluminum
Standard Components
Monitor: 19” TFT, Resolution 1.280 x 1.024
Prebuilt for PC: Holder for standard PCs SSF- or USSF-Enclosure. Incl. 230V power
Touch monitor: 19” Touch monitor
Options:
- Keyboard: IP65 metal keyboard in stainless steel with trackball
- PC-Controller: As required
- Sound: 2 x10 Watt speakers, totally integrated
- Printer: 60 or 80 mm thermal printer
- Network: WLAN
- RFID- Reader: Wireless Reader (placed below the monitor)
Technische details
| Gewicht (kg) | ±45 |
| Dimensies HxBxL (mm) | 1000 x 480 x 120 |
| Kleur | RAL 9006 |
| Environment | +5°C - +30°C | max.70% |
| Staal en aluminium | |
| Resolution Display | 1280 x 1024 |
| Type Display | 17" |
| Specs Display | 300 cd/m² 400:1 |
| Extra Display | Bevat touchscreen |
| Connections | VGA | DVI |
